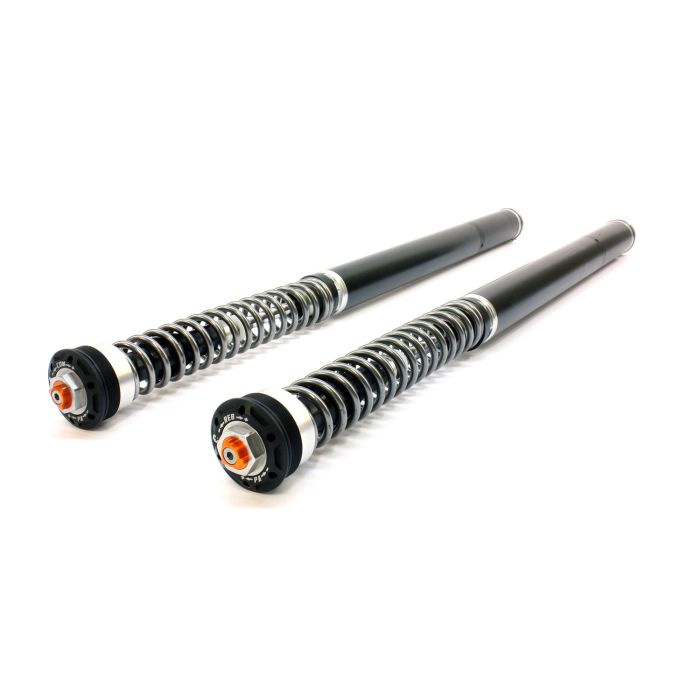

Yamaha XT1200Z Super Tenere Fork Cartridge kit X-TREME
High performance closed cartridge with adjustable rebound and compression damping. Manual preload adjustment.
These cartridges fit right into the fork legs without modifications to the fork. The cartridges are closed, meaning that the cartridge is like a separate, pressurised shock absorber inside the fork with its own damping oil for optimal handling. The products were originally developed in close cooperation with adventure riders, world travelers and rally riders. The products have proven their value over the years: hugely improved off-road handling while retaining comfort during long travels. This is certainly also due to the huge size of piston used: 35 mm diameter. This size of piston is the largest of all aftermarket suspension providers. Apart from a high oil flow, this piston size allows for a stable, well-controlled damping behaviour. The size of the internal bore also allows to use electronic adjustments. Later on the cartridges have been further developed for use in road racing. Again the cartridge design has proven to be stable and finely adjustable. Every cartridge can be easily opened and serviced. Or the damping can be tuned for the customer's application. Spring rate, spring preload and air chamber are easily modified, there is for every product a range of springs available pending on loading and application. Every cover cap contains a dearation screw to remove an excess of foam and air.
The damping can be easily adjusted with 18 clicks using the cover caps on the top of the fork legs. The adjustments are separate, meaning that the left fork leg is used for compression damping adjustment, and the right fork leg contains the rebound damping adjustment. In both legs the preload can be adjusted over 12 mm.
At the end of the stroke there is an hydraulic end stop. This helps with preventing hard bottoming during large impacts.
These cartridges fit right into the fork legs without modifications to the fork. The cartridges are closed, meaning that the cartridge is like a separate, pressurised shock absorber inside the fork with its own damping oil for optimal handling. The products were originally developed in close cooperation with adventure riders, world travelers and rally riders. The products have proven their value over the years: hugely improved off-road handling while retaining comfort during long travels. This is certainly also due to the huge size of piston used: 35 mm diameter. This size of piston is the largest of all aftermarket suspension providers. Apart from a high oil flow, this piston size allows for a stable, well-controlled damping behaviour. The size of the internal bore also allows to use electronic adjustments. Later on the cartridges have been further developed for use in road racing. Again the cartridge design has proven to be stable and finely adjustable. Every cartridge can be easily opened and serviced. Or the damping can be tuned for the customer's application. Spring rate, spring preload and air chamber are easily modified, there is for every product a range of springs available pending on loading and application. Every cover cap contains a dearation screw to remove an excess of foam and air.
The damping can be easily adjusted with 18 clicks using the cover caps on the top of the fork legs. The adjustments are separate, meaning that the left fork leg is used for compression damping adjustment, and the right fork leg contains the rebound damping adjustment. In both legs the preload can be adjusted over 12 mm.
At the end of the stroke there is an hydraulic end stop. This helps with preventing hard bottoming during large impacts.
Incl. 21% VAT
€ 1.249
Excl. VAT
Excl. VAT:
Excl. VAT:

calcActive())">
Incl. 21% VAT
€ 1.249
Excl. VAT
Excl. VAT:
Excl. VAT:
SKU
35YA12-D5305-TR
Product Line
X-TREME
Product Type
Cartridge kit
Brand
YAMAHA
Model
XT1200Z Super Tenere
Model Year
2012 - 2020
Height
Standard
Installation location
Front
Damping adjustment
Rebound & Compression
Damping system
Separated oil/gas
Damping feature
Hydraulic end-stop
Piston diameter (mm)
35
Preload adjustment
Mechanical
Spring type
Linear, included
Spring rate (N/mm)
8,8
Rebound Position
10
Compression Position
10
Air Chamber Street (mm)
120
Air Chamber Off-Road (mm)
110
Preload Spring (mm)
11 +12 / -0
